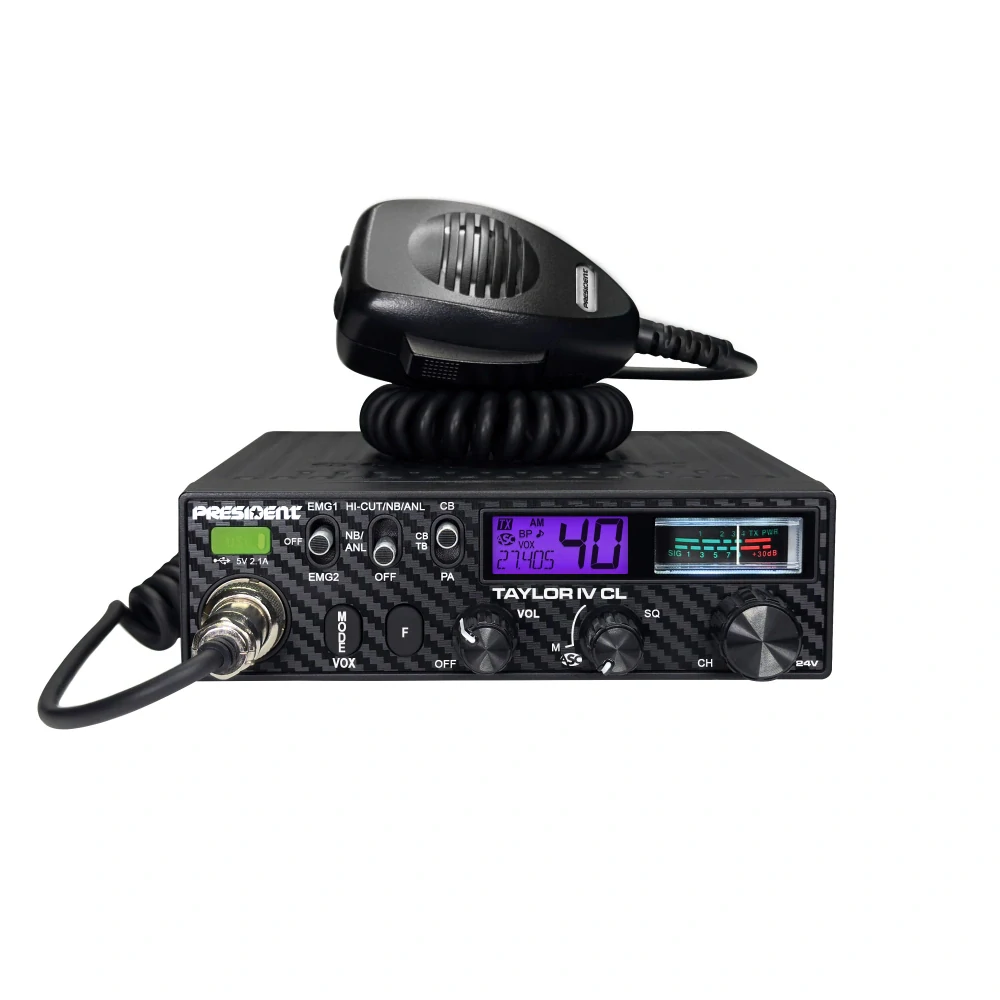

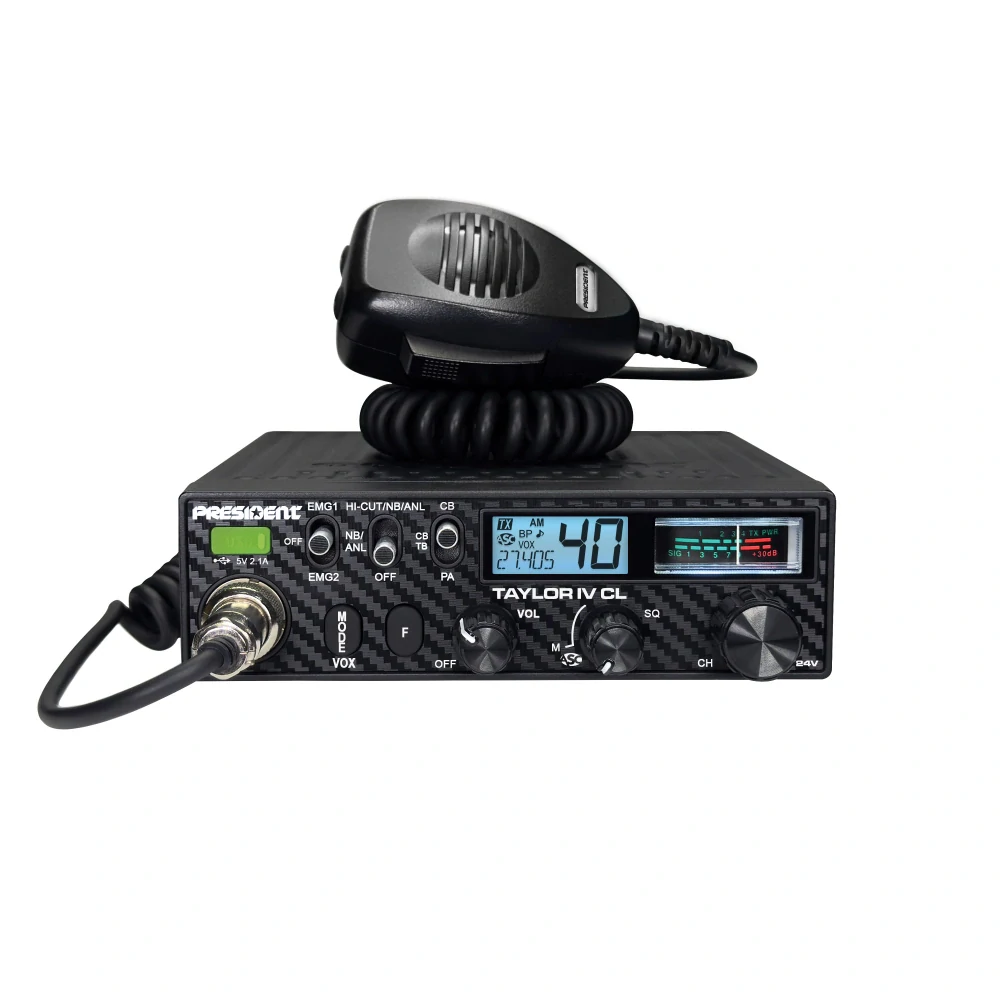

President Taylor IV CL
- Novinka
- Kompletní specifikace
- Ke stažení
- President Taylor IV CLSkladem4 050 Kč/ ks3 347 Kč bez DPH
Kompletní specifikace
Novinka!!!
Verze s karbonovým čelním panelem
- 40 kanálů AM / FM
- - President Channels
- rotační kanálový volič
- Volume, ON/OFF
- Manuální squelch a ASC
- Multifunkční LCD display
- Zobrazení frekvence
- S/RF vu-meter
- ANL / NB / HI-CUT filtry
- Přepínání AM / FM
- Scan
- Public Address
- Talkback
- VOX
- Preset emergency (EMG 1/2)
- Key beep
- Roger beep
- Mic type electret / dynamic
- F function key
- SWR (Power Reading /SWR)
- Přední mikrofonní vstup
- Vstup pro externí repro
- USB 5V 2.1A
Back light color :
Technické parametry:
General
| Number of channels | : | 40 |
| Modulation modes | : | AM / FM |
| Frequency ranges | : | from 26.965 MHz to 27.405 MHz |
| Antenna impedance | : | 50 ohms |
| Power supply | : | 12 V / 24 V |

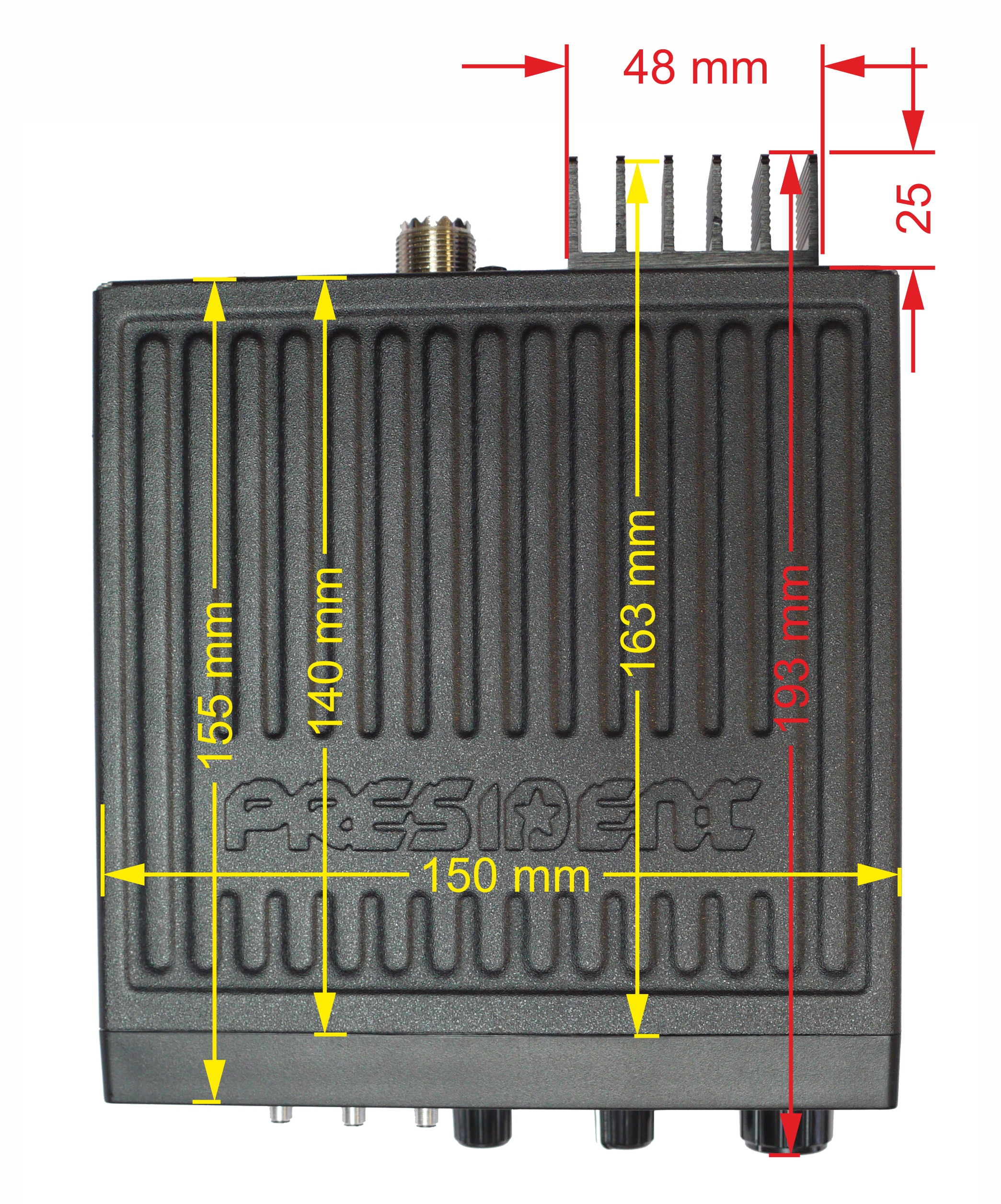

| Size | : | 150 (L) x 165 (H) x 45 (D) |
| Weight | : | 1.2 kg |
| Accessories supplied | : | 1 microphone UP/DOWN and its hanger mounting cradle screws |
Transmission
| Frequency allowance | : | +/- 300 Hz |
| Carrier power | : | 4 W AM / 4 W FM |
| Transmission interference | : | inferior to 4 nW (- 54 dBm) |
| Audio response | : | 300 Hz to 3 kHz in AM/FM |
| Emitted power in the adj. channel | : | inferior to 20 μW |
| Microphone sensitivity | : | 1,0 mV |
| Drain | : | 1.7 A (with modulation) |
| Modulated signal distortion | : | 1,8 % |
Reception
| Maxi. sensitivity at 20 dB sinad | : | 0.5 μV - 113 dBm (AM/FM) |
| Frequency response | : | 300 Hz to 3 kHz in AM/FM |
| Adjacent channel selectivity | : | 60 dB |
| Maximum audio power | : | 5 W |
| Squelch sensitivity | : | minimum 0.2 μV - 120 dBm / maximum 1 mV - 47 dBm |
| Frequency image rejection rate | : | 60 dB |
| Intermediate frequency rej. rate | : | 70 dB |
| Drain | : | 500 mA nominal / 800 mA maximum |
