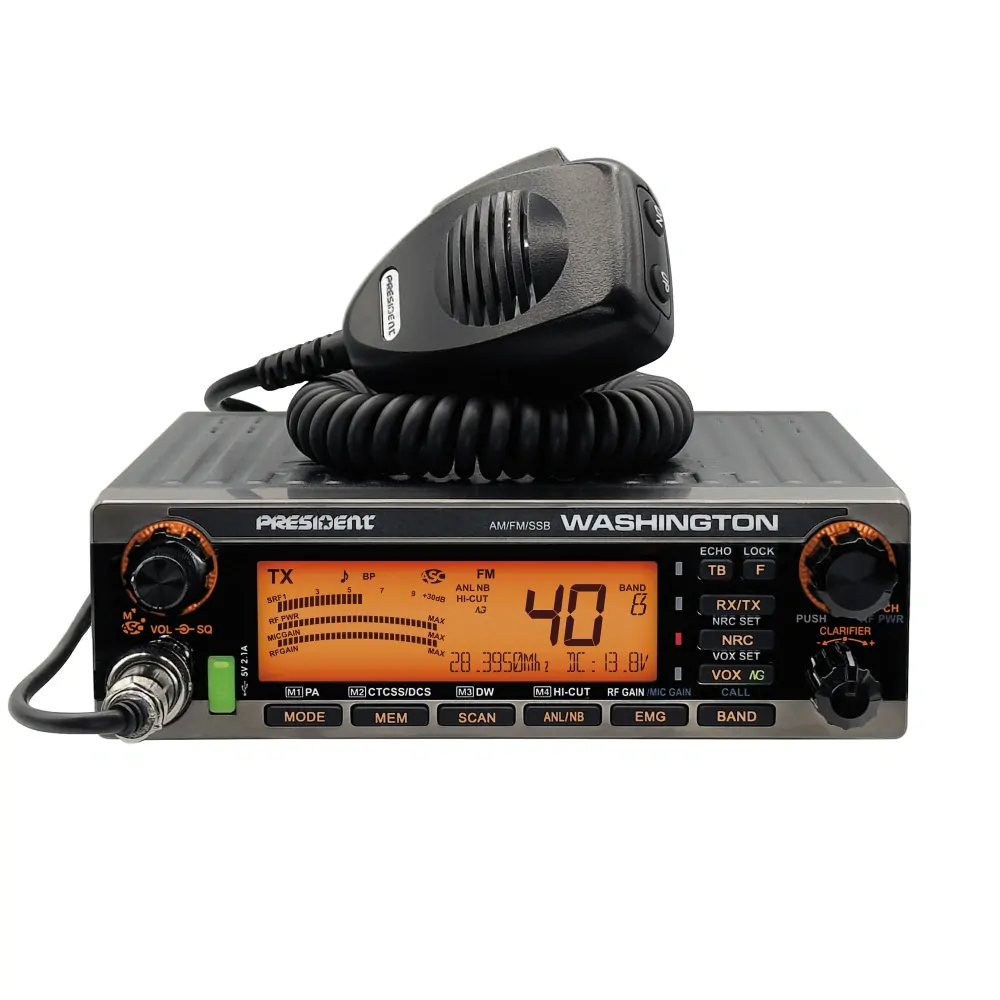

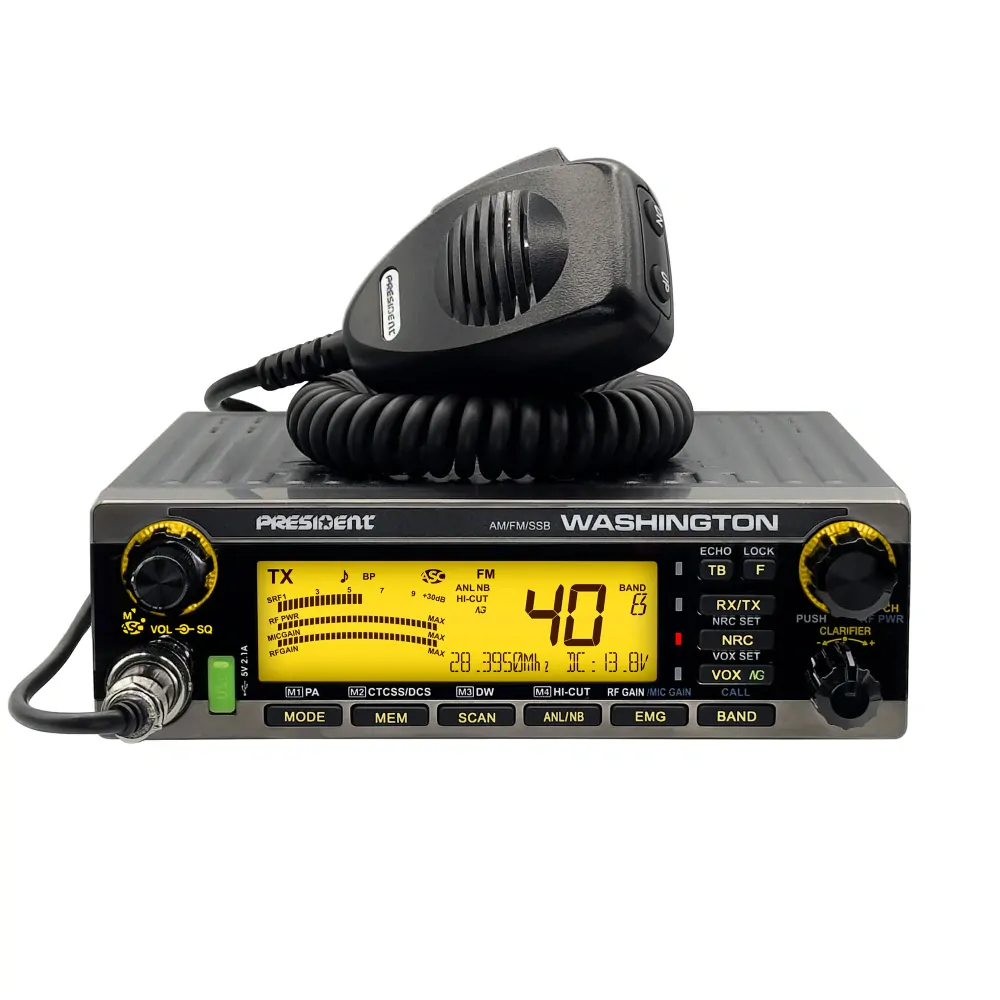

President WASHINGTON 100W

Kompletní specifikace

- 13,8V

- Veřejná adresa (PA - public address)

- Multifunkční LCD displej

- DIMMER (stmívač)

- Zobrazení frekvence

- Indikátor úrovně - Digitální vysílání a příjem

- Ruční squelch

- ASC

- Otočný volič kanálů

- ROGER BEEP

- Zámek

- Paměť ( 4 paměti)

- Dual Watch

- RF Power

- RF Gain

- Mic Gain

- Clarifier

- Talkback

- Vox

- SWR

- ANL/NB/HI-CUT

- CTCSS 38 tónů

- Kódy DCS 104

- Barva osvětlení: oranžová - zelená - modrá - tyrkysová - žlutá - fialová - světle tyrkysová

Doplňkové příslušenství pro radiostanici President Washington:

Size (mm)	170 (W) x 250 (D) x 52 (H)
:Weight	1,4 kg
:Accessories supplied	1 microphone UP/DOWN and its hanger , 1 mounting bracket with fixing screws , power cord with fuse
:Antenna socket	SO-239
:Antenna impedance	50 ohms
:Multiconfiguration	EU / U / D / PL / IN
:Frequency ranges	from 24.890 Mhz to 24.990 Mhz and from 28.000 Mhz to 29.700 Mhz (continuous scanning)
:Power supply	Nominal 13.8V DC, negative ground (10.5 VDC to 16.0 VDC)
:Microphone plug	front (6 pins)
:Compatible microphone type	Electret , Dynamic
:External Vox microphone jack	⋅
:External loudspeaker jack	•
:Public address	•
:External HP PA socket	•
:USB socket (front)	5 V / 2,1 A
:Display	LCD multifunction
:Dimmer	•
:Frequencies display	•
:Band name	•
:S-meter	Digital
:Modulation modes	AM / FM / USB / LSB
:Volume adjustment and ON/OFF	•
:Squelch	Manual squelch
:ASC	•
:Channel selector	Rotary
:Mode switch	•
:F / Menu function key	•
:Key Beep	, Switchable
:Roger beep	, Switchable , 6 tones
:Key locking	•
:Tone	•
:Memory	4
:Channel preselection	2 , channel 9 & 19 , emergency channel (EMG) programmable
:Span	•
:Dual watch	•
:Scan	channels , memories
:Scan Skip	•
:RF Power	•
:RF Gain	•
:Mike-Gain	•
:Clarifier	•
:Talkback	•
:Vox	•
:Automatic SWR meter	•
:SWR (Power Reading /SWR)	•
:Echo	•
:CALL function	•
:TOT	•
:Filter ANL	•
:Filter NB	•
:Filter HI-CUT	•
:NRC	•
:Noise Gate	•
:CTCSS	38 tones
:DCS	104 codes

Frequency allowance	± 200 Hz
:Carrier power	100 W PEP (AM/USB/LSB) / 50 W (FM)
:Power limitation	4/10W
:APM
:Transmission interference	< 4 nW (-54 dBm)
:Audio response	300 Hz to 3 kHz
:Emitted power in the adj. channel	< 20 μW
:Microphone sensitivity	3 mV
:Drain	12 A - 13,8V (with modulation)
:Modulated signal distortion	2%

Max. sensitivity at 20 dB sinad	0.5 µV - 113 dBm (AM) / 0.35 µV - 116 dBm (FM) / 0.28 µV - 118 dBm (USB/LSB/CW)
:Frequency response	300 Hz to 3 kHz
:Adjacent channel selectivity	60 dB
:Maximum audio power	3 W
:Squelch sensitivity	min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
:Frequency image rejection rate	60 dB
:Intermediate frequency rej. rate	70 dB
:Drain	400 mA nominal / 600 mA max.

N°	Freq. (Hz)	N°	Freq. (Hz)	N°	Freq. (Hz)
00 - oF	OFF	13	103.5	26	162.2
1	67.0	14	107.2	27	167.9
2	71.9	15	110.9	28	173.8
3	74.4	16	114.8	29	179.9
4	77.0	17	118.8	30	186.2
5	79.7	18	123.0	31	192.8
6	82.5	19	127.3	32	203.5
7	85.4	20	131.8	33	210.7
8	88.5	21	136.5	34	218.1
9	91.5	22	141.3	35	225.7
10	94.8	23	146.2	36	233.6
11	97.4	24	151.4	37	241.8
12	100.0	25	156.7	38	250.3

DCS Code List

N°	DCS (Octal)	N°	DCS (Octal)	N°	DCS (Octal)	N°	DCS (Octal)
1	23	27	152	53	311	79	466
2	25	28	155	54	315	80	503
3	26	29	156	55	325	81	506
4	31	30	162	56	331	82	516
5	32	31	165	57	332	83	523
6	36	32	172	58	343	84	526
7	43	33	174	59	346	85	532
8	47	34	205	60	351	86	546
9	51	35	212	61	356	87	565
10	53	36	223	62	364	88	606
11	54	37	225	63	365	89	612
12	65	38	226	64	371	90	624
13	71	39	243	65	411	91	627
14	72	40	244	66	412	92	631
15	73	41	245	67	413	93	632
16	74	42	246	68	423	94	654
17	114	43	251	69	431	95	662
18	115	44	252	70	432	96	664
19	116	45	255	71	445	97	703
20	122	46	261	72	446	98	712
21	125	47	263	73	452	99	723
22	131	48	265	74	454	100	731
23	132	49	266	75	455	101	732
24	134	50	271	76	462	102	734
25	143	51	274	77	464	103	743
26	145	52	306	78	465	104	754

Ke stažení
