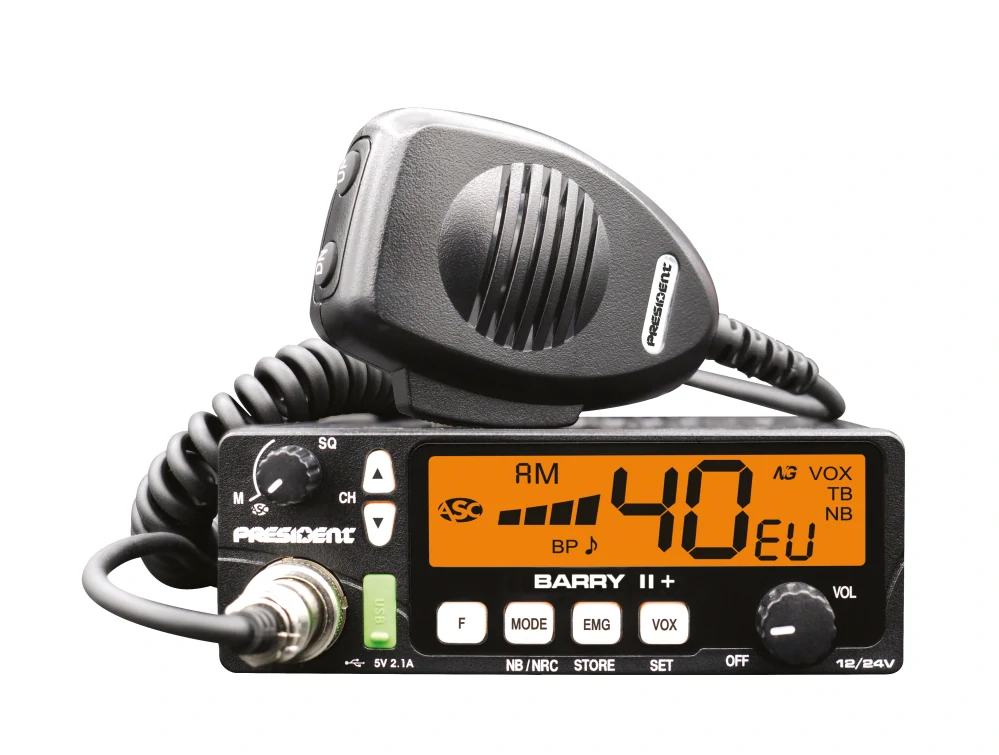

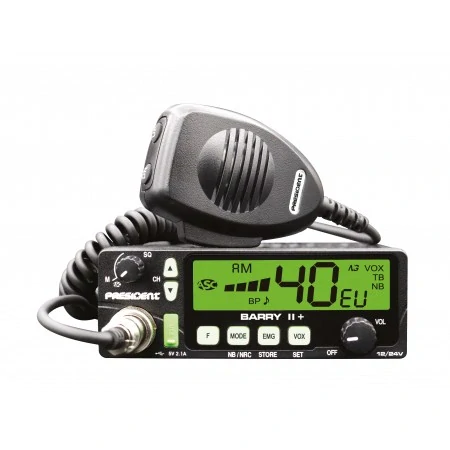

President BARRY II + AM/FM VOX

Kompletní specifikace

NOVINKA !!!

40 channels AM / FM
- 12 / 24 V
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- Public Address
- Talkback
- ANL filter, NB
- Compander
- F function key
- Beep Function
- Roger Beep
- VOX
- NRC
- Noise Gate
- Mode switch AM / FM
- Preset channel programmable
- TOT (Time out timer)
- Front microphone plug
- External loudspeaker jack
Osvětlení displeje:

Doporučené příslušenství : DIN rámeček Barry

General

Number of channels	:	40
Modulation modes	:	AM / FM
Frequency ranges	:	from 26.965 MHz to 27.405 MHz
Antenna impedance	:	50 ohms
Power supply	:	12 V / 24 V
Size	:	125 (W) x 180 (D) x 45 (H)
Weight	:	0.9 kg
Accessories supplied	:	1 microphone UP/DOWN and its hanger 1 mounting bracket with fixing screws
Filter	:	ANL (Automatic Noise Limiter) built-in

Transmission

Frequency allowance	:	+/- 200 Hz
Carrier power	:	4 W AM / 4 W FM
Transmission interference	:	inferior to 4 nW (- 54 dBm)
Audio response	:	300 Hz to 3 KHz
Emitted power in the adj. channel	:	inferior a 20 μW
Microphone sensitivity	:	7 mV
Drain	:	1,7 A at 13,2 V / 0,85 A at 26,4 V
Modulated signal distortion	:	2 %

Reception

Maxi. sensitivity at 20 dB sinad	:	0,5 µV - 113 dBm AM / 0,35 µV - 116 dBm FM
Frequency response	:	300 Hz to 3 kHz
Adjacent channel selectivity	:	60 dB
Maximum audio power	:	2.5 W
Squelch sensitivity	:	mini 0.2 μV - 120 dBm / maxi 1 mV - 47 dBm
Frequency image rejection rate	:	60 dB
Intermediate frequency rej. rate	:	70 dB
Drain	:	160 ~ 420 mA (13,2 V) ;100 ~ 250 mA (26,4 V)
